1.PERSONNEL QUALIFICATIONS
-

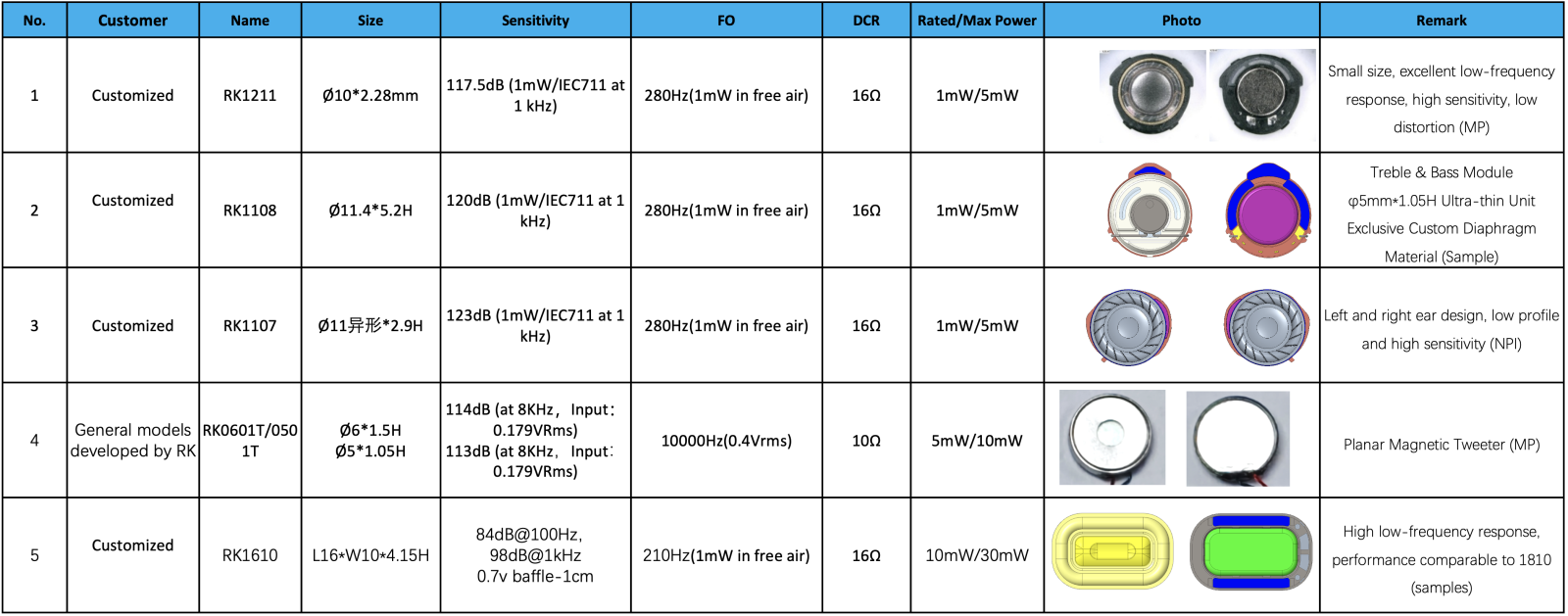

2.Earphone SPK
-
3.Micro SPK-Earphone
-

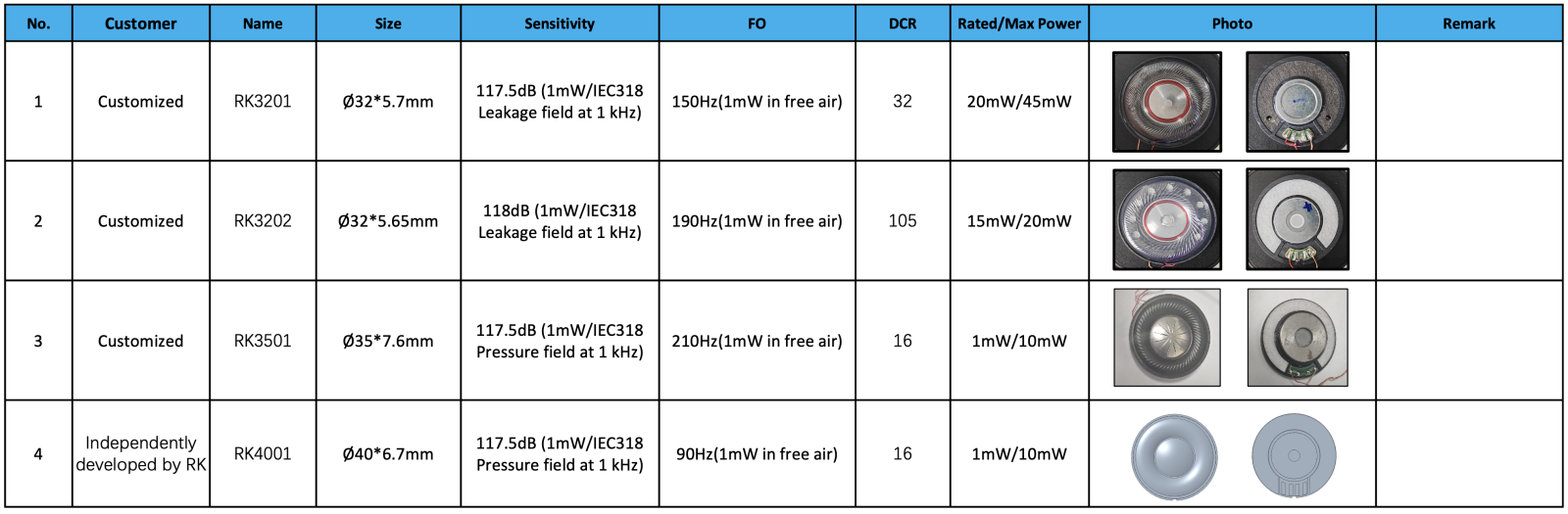

4.Micro SPK-Headset
-
5.Spice-B07：13700-H0G0001H-00 Product Introduction
-

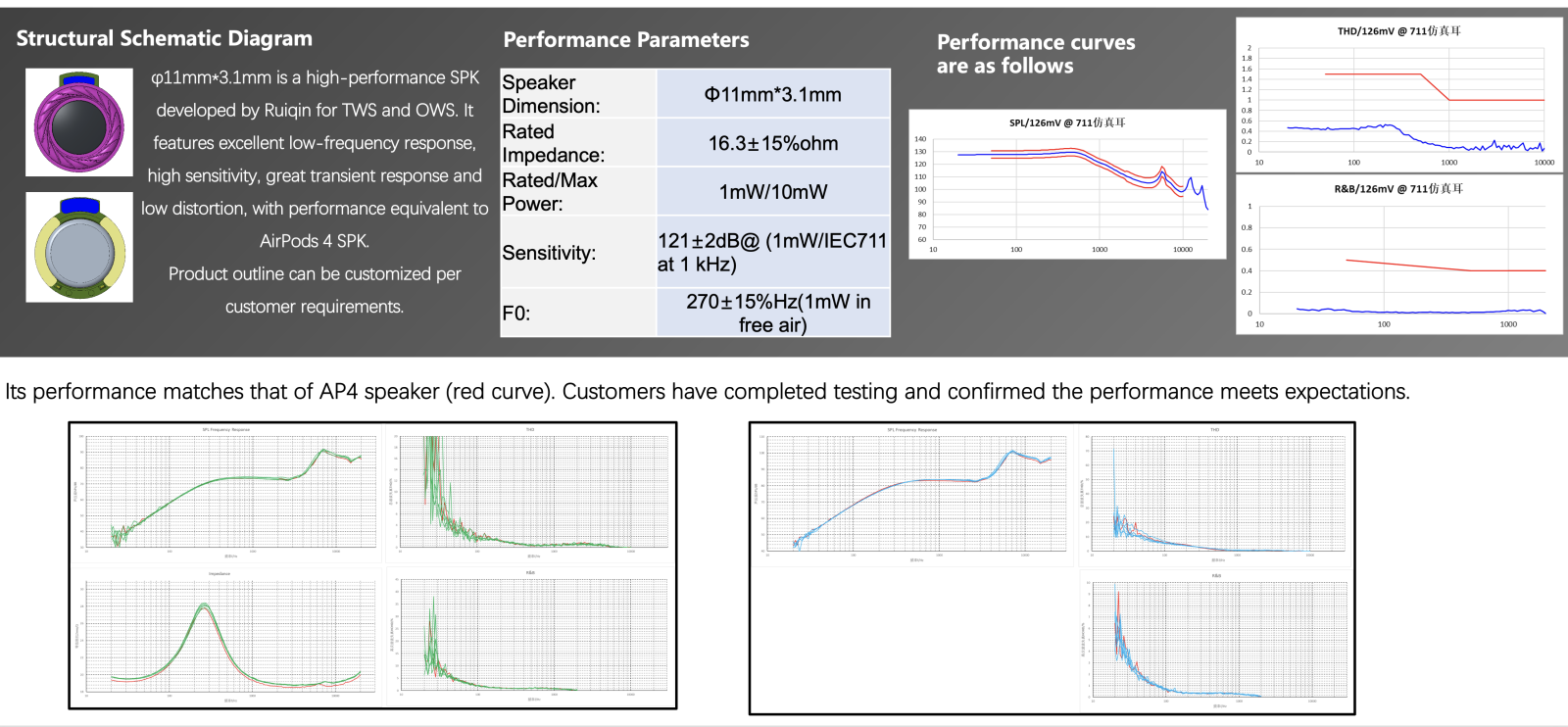

6.Earphone SPK-φ11*3.1mm Performance Demonstration of Single Unit Development
-

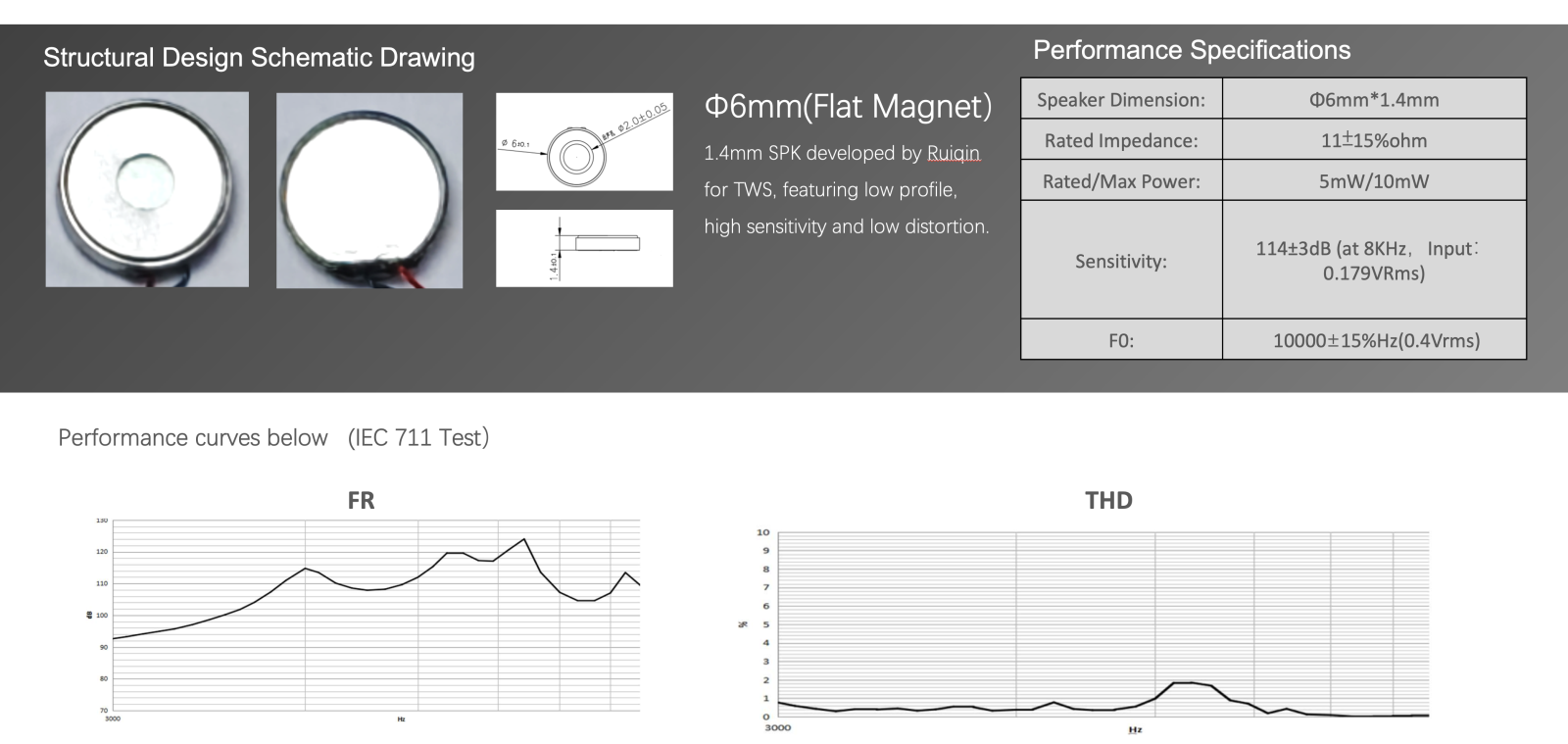

7.MICRO SPK Φ6 (FLAT MAGNET) 1.4MM UNIT PERFORMANCE
-

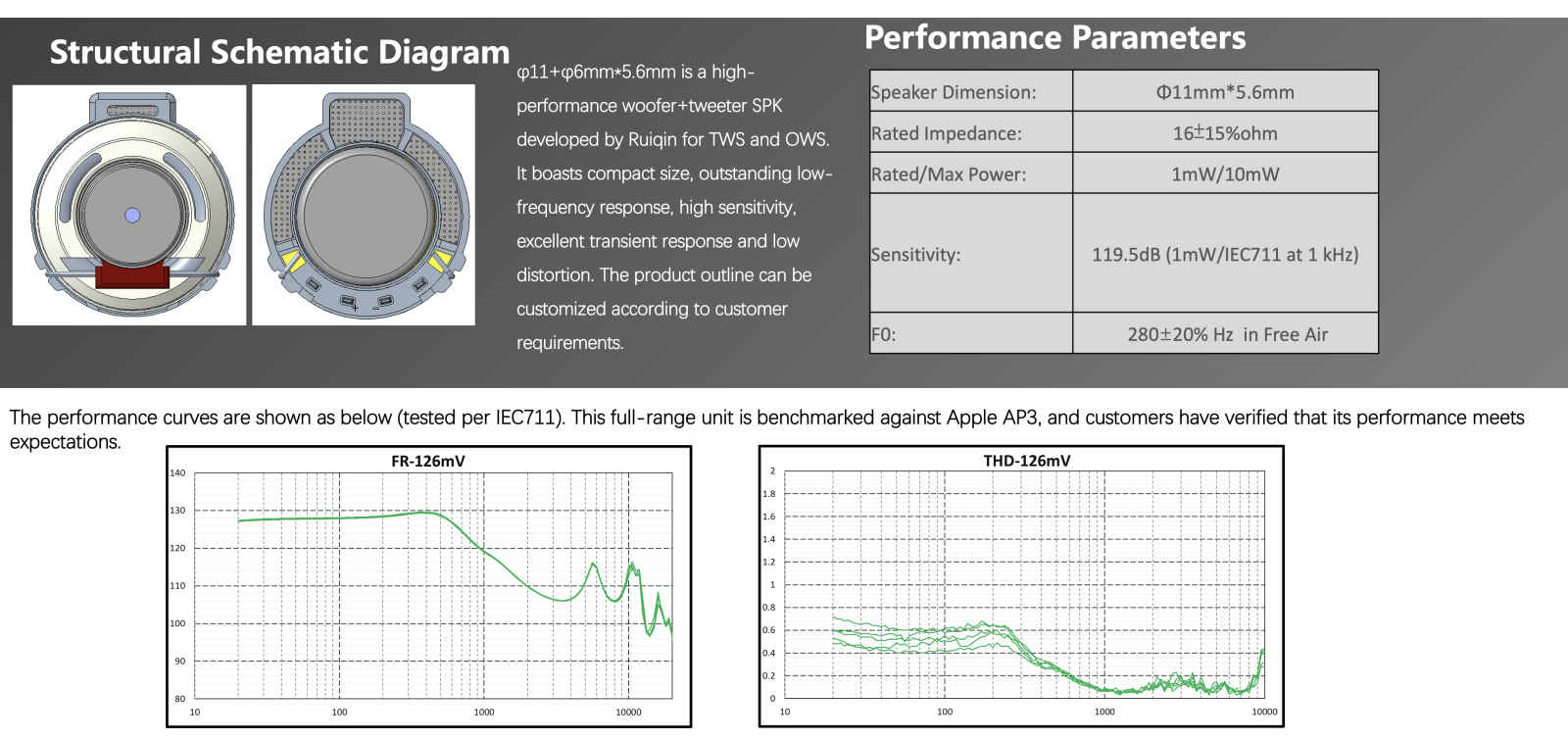

8.Performance Demonstration of Micro SPK Single Unit - φ11+φ6*5.6mm
-
9.Performance Demonstration of Micro SPK Single Unit φ11+φ6*5.6mm
-
10.New Material Diaphragm - Earphone Unit
-
Material Name | Features |
Custom PU Material | ØHigh elasticity and low damping ØMinor F0 shift under varying temperature and humidity |
High-strength Carbon Fiber Dome | ØNew composite material: pressed from carbon fiber and thermoplastic resin fiber ØHigh strength and low density：Its bending strength is about twice that of aluminum, while its density is only half of aluminum. ØHigher structural strength after diaphragm forming, resistant to deformation. |
11.New Material Diaphragm - Over-ear Unit
-
Material Name | Features |
Abaca fiber dome | ØNatural plant fiber ØCustomizable colors (transparent, black, etc.) |
High-strength carbon fiber dome | ØNew composite material: compressed with carbon fiber and thermoplastic resin fiber ØHigh strength and low density: its bending strength is approximately twice that of aluminum, while its density is only half of aluminum. ØHigher structural strength of formed diaphragm, anti-deformation |
Microcrystalline damping diaphragm | ØManufactured with a blended formula of microcrystalline metal and polymer materials via high-precision coating process ØMetallic appearance |
Aluminum foil polyester diaphragm | ØMetallic appearance（Silver, translucent blue） ØSound Performance of Silver Aluminum Foil Polyester Diaphragm：Deep bass extension and strong impact, wide and bright sound field, excellent surround sound effect，under further development. |
New graphene diaphragm | ØSuperior high-frequency resolution ØUnder development |

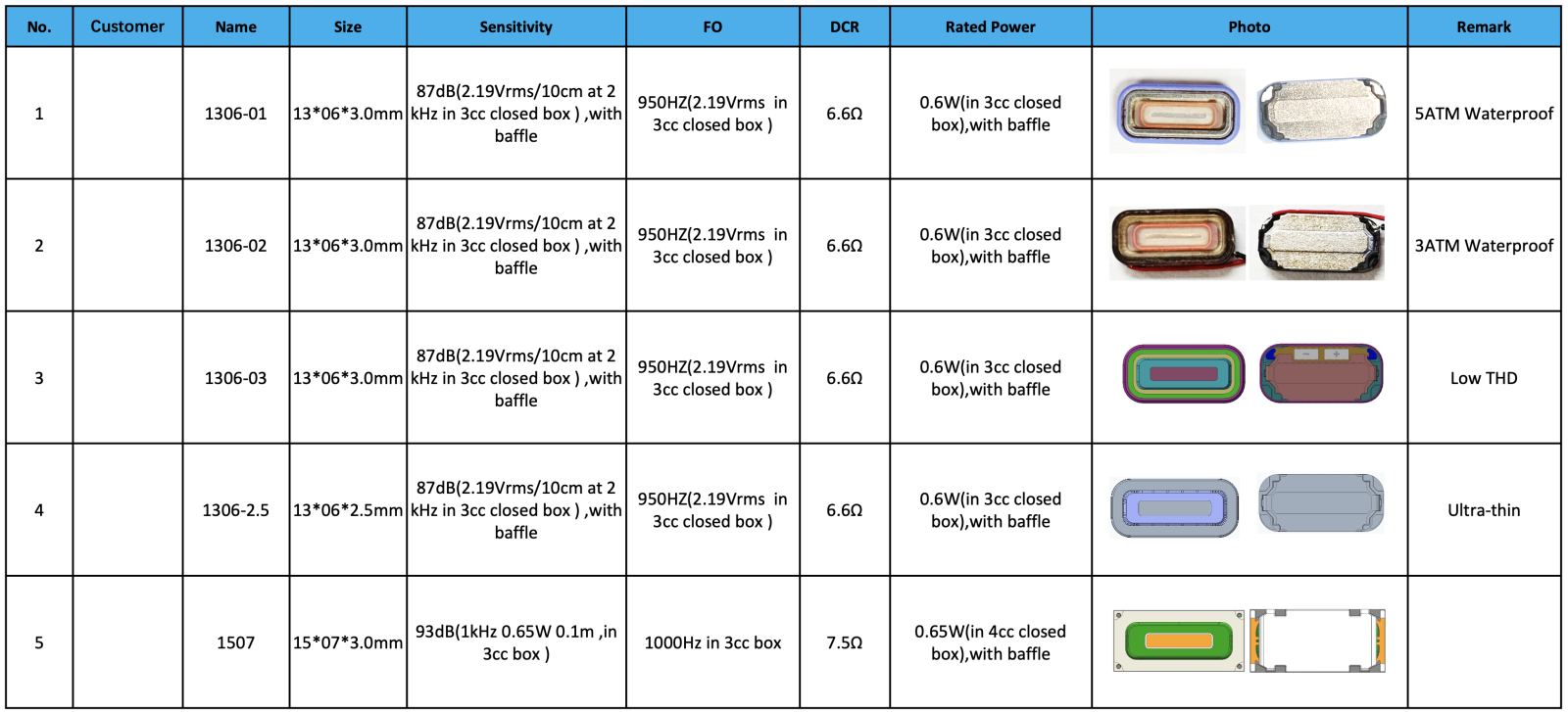

12.MICRO SPK-WATCH
-
